Humidity Separator

name of steam separator

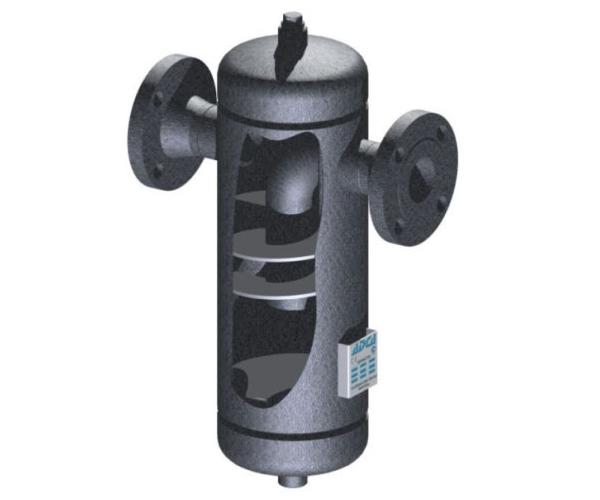

Humidity Separator

model of steam separator

S25

brand of steam separator

ADCA

manufacturer country

Portugal

دانلود کاتالوگ 49693Catalog.pdf

description

S25/S carbon steel body, PN16-PN40, DN 15 to 300, Flanged ANSI CL 150 and 300Lb, Female screwed BSP or NPT on request, Option Zinc plated (compressed air) Condensate flanged connection, Use: Steam, compressed air and other gases (Group 2), Installation: Always with the condensate discharge pointing downwards, S-25 series centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air passing through the separator and as a result of centrifugal forces, impact and swirling effects, separate the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale. The condensate collected at the bottom of the separator, must be automatically drained by a suitable steam or compressed air trap. Connections are flanged. Main features several possibilities of installation. No moving parts.
